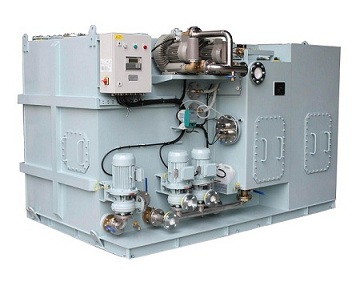

Sewage Treatment Plant
All Units
| Specifications | Value |
|---|---|
| IMO MEPC Compliance | 159 (55) |
| Type | Biological |
| Frequency | 50 or 60 Hz |
| Total Suspended Solids | ≤ 35 mg/L |
| Biochemical Oxygen Demand (BOD5) | ≤ 25 mg/L |
| Thermotalerant Coliform Standard | ≤ 100/100 mL |
| Chlorine Residual | ≤ 0.5 mg/L |
| Chemical Oxygen Demand (COD) | ≤ 125 mg/L |
| PH | 6 - 8.5 |
Sewage Treatment Plant, Resolution MEPC.159(55) - Specification Sheet
| Model | Person | Certified Hydraulic Load (m³/day) | Rated Organic Load (kg/d) | Power Consumption (kW) | Dimension (LxWxH mm) | Weight (dry/wet kg) |
|---|---|---|---|---|---|---|
| ST- 20U | 28 | 2 | 1.5 | 8 | 1830x900x2000 | 850/3200 |
| ST- 30U | 42 | 3 | 2 | 8 | 1500x1250x2000 | 950/4400 |
| ST- 50U | 70 | 5 | 3.3 | 8 | 2500x1500x2000 | 1500/6000 |
| ST- 70U | 100 | 7 | 4.8 | 8 | 3000x1500x2000 | 1800/7800 |
| ST-100U | 150 | 11 | 7.2 | 9 | 3100x2000x2000 | 2500/11500 |
| ST-140U | 200 | 14 | 9.5 | 9 | 3800x2000x2000 | 2850/14000 |
| ST-200U | 300 | 21 | 14.3 | 10 | 4600x1900x2600 | 3700/20000 |
| ST-300U | 420 | 30 | 20 | 12.5 | 4500x4000x2600 | 7200/30000 |
