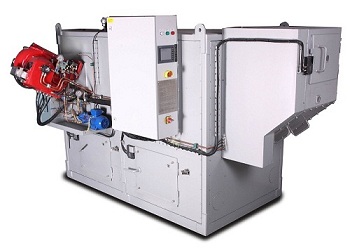

Incinerator
All Units
| Specifications | Value |
|---|---|
| IMO MEPC Compliance | 76 (40) |
| Frequency | 50 or 60 Hz |
| Major Equipment |
|
Incinerator, Resolution MEPC.76(40) - Specification Sheet
| Type | Kcal/h | kW | Sludge Oil IMO Spec (kg/h) | Solid Waste Kcal/h | Dimensions LxWxH (mm) | Flue Gas Duct (DN) | Sludge Oil Tank (L) |
|---|---|---|---|---|---|---|---|
| HSINC-18 | 180,000 | 208 | 22.5 | 156,000 | 1330x990x1840 | 200 | 500 |
| HSINS-50 | 500,000 | 580 | 63 | 430,000 | 2070x1340x1990 | 400 | 1,000 |
| HSINC-50A | 500,000 | 580 | 63 | 430,000 | 2070x2030x1960 | 400 | 1,000 |
| HSINC-80 | 800,000 | 929 | 100 | 556,400 | 3040x2000x2000 | 500 | 2,000 |
| HSINC-100 | 1,000,000 | 1162 | 125 | 835,200 | 3040x1550x2350 | 600 | 2,000 |
| HSINC-120 | 1,000,000 | 1395 | 150 | 905,200 | 3050x1560x2400 | 600 | 2,000 |
