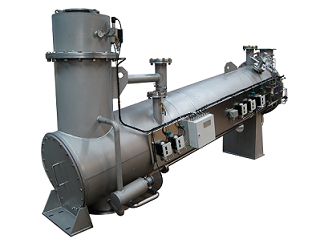

Inert Gas Generator
All Units
| Specifications | Value |
|---|---|
| O2 Content | 2-4 % |
| CO2 Content | Max 14% |
| CO Content | Max 500 ppm |
| Sulfide Content | 50 ppm |
| Inert Gas Temperature | Max 6% Above Cooling Water Temperature |
| Frequency | 50/60 Hz |
Inert Gas Generator, IMO Resolution A.567(14) – Specification Sheet
| Capacity (Nm³/hr) | FanLxWxH (mm) | IGGLxWxH (mm) | DWSDxH (mm) | PVBDxH (mm) |
|---|---|---|---|---|
| 500 | 882x731x1047 | 3500x600x1525 | 600x1730 | 450x2568 |
| 2500 | 1606x1080x1257 | 4255x900x1925 | 900x1730 | 450x2568 |
| 5000 | 1850x1158x1257 | 5100x1100x2215 | 1275x1730 | 508x2568 |
| 7500 | 2075x1236x1384 | 6500x1200x2585 | 1550x1730 | 762x2568 |
| 10000 | 2200x1326x1560 | 7500x1400x2950 | 1800x1730 | 813x2568 |
