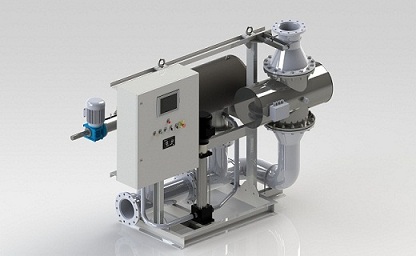

Ballast Water Management System
ballast water management system

System Features

  • Totally chemical-free process
  • Compact design and minimized footprint
  • User-friendly for easy installation and maintenance
  • Human machine interface with in-touch screen
  • High quality material and long service life

All Units

Specifications Value
IMO MEPC Compliance174 (58)
FilterSS 316L Mesh Filter
Filtration Grade50 micron
DisinfectionUV Sterilizer
UV Radiation Dose200-300 mJ/cm²
Frequency50/60 Hz
Major Equipment
  1. Automatic High Pressure Self-Flushing Filter
  2. Ultraviolet (UV) Unit
  3. High Pressure Pump
  4. Control System
  5. Flow Meter

Ballast Water Management System, Resolution MEPC.174(58) - Specification Sheet

Model Capacity Range (m3/hr) Rated Capacity (m3/hr) Power (kW) Dimension (LxWxH mm) Weight (kg)
Cyeco-B20040-20020013/241160x1160x25001355
Cyeco-B25050-25025016/301200x1160x25501495
Cyeco-B30060-30030019/361300x1250x25501645
Cyeco-B40080-40040026/481500x1300x26001725
Cyeco-B500100-50050032/601500x1300x27001775
Cyeco-B600120-60060039/721650x1420x29001895
Cyeco-B750150-75075045/721900x1580x29001925
Cyeco-B800160-80080052/842025x1726x30102225
Cyeco-B1000200-1000100065/962150x1750x30602470
Cyeco-B1200240-1200120076/1082300x1800x31202720
Cyeco-B1500300-1500150090/1443800x1750x29503825
Cyeco-B2000400-20002000130/1923150x2820x30005280
Cyeco-B3000600-30003000195/2884750x2250x34808050
Cyeco-B4000800-40004000260/3846800x2500x360010650
Cyeco-B50001000-50005000325/4808600x2700x370013200
Cyeco-B60001200-60006000380/5409850x2950x380014500
